Gear Shaving Machines

• Accuracy
• 0.003 mm

• Color
• Blue & White

• Connectivity Options
• Ethernet, USB

• Control System
• Other, CNC Controller

• Cooling System
• Water Cooled

• Dimension (L*W*H)
• 2400 x 1700 x 1800 mm

• Drive
• Direct Drive Motor

• Features
• Heavy Duty, High Precision, Low Vibration

• Frame Type
• Robust Welded Frame

• Frequency
• 50 Hz

• Lubricating System
• Automatic

• Machine Type
• CNC Gear Shaving

• Model No
• MICNCM-03

• Motor Power
• 7.5 kW

• Noise Level
• <75 dB

• Operating Temperature
• 5C-45C

• Operating Type
• Automatic

• Power
• 7.5 kW

• Power Rating
• 7.5 kW

• Power Source
• Other, Electric

• Pressure
• Hydraulic 16-25 MPa

• Product Type
• Other, Michigan Shaving Machine

• Production Capacity
• 45 pieces per hour

• Surface Treatment
• Other, Paint Coated

• Technology
• CNC

• Usage & Applications
• Industrial Gear Shaving

• Voltage
• 415 V AC

• Weight (kg)
• 3200 kg

• Accuracy
• 0.01 mm

• Color
• Blue/Grey

• Connectivity Options
• USB, Ethernet

• Control System
• Other, PLC + CNC Controller

• Cooling System
• Integrated Coolant System

• Dimension (L*W*H)
• 3100 x 2200 x 2000 mm

• Drive
• Servo/Electric

• Features
• High Precision, Low Vibration, Heavy Duty Frame, User Friendly Interface

• Frame Type
• Rigid, Heavy Duty Cast Iron

• Frequency
• 50 Hz

• Lubricating System
• Automatic Centralized Lubrication

• Machine Type

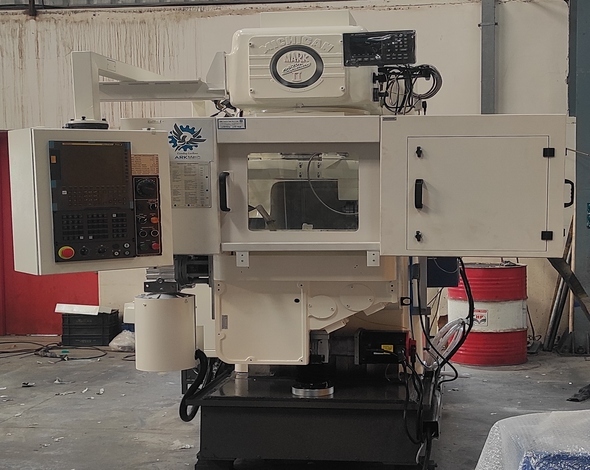

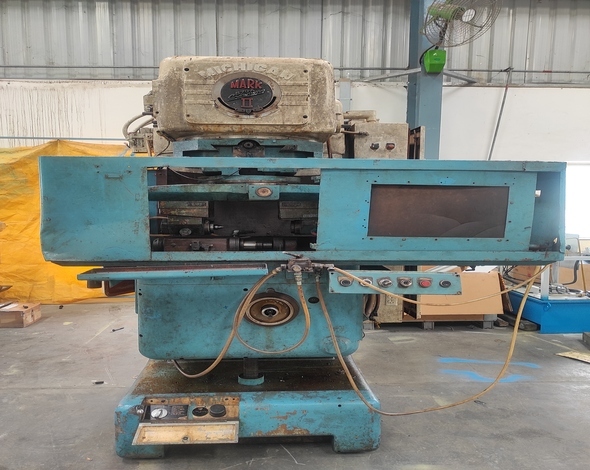

• CNC Michigan Shaving Machine

• Model No
• Michigan CNC-300S

• Motor Power
• 7.5 kW

• Noise Level
• 75 dB

• Operating Temperature
• 5C ~ 45C

• Operating Type
• Automatic

• Power
• 7.5 kW

• Power Rating
• 7.5 kW

• Power Source
• Other, Electric

• Pressure
• Hydraulic/Mechanical (Depends on model)

• Product Type
• Other, Shaving Machine

• Production Capacity
• Up to 300 pcs/hour

• Surface Treatment
• Other, Powder Coated/Polished

• Technology
• Other, CNC (Computer Numerical Control)

• Usage & Applications
• Gear Shaving for Precision Gears

• Voltage
• 380 V - 415 V

• Weight (kg)
• 3500 kg

• Accuracy
• 0.006 mm

• Color
• Green/White

• Connectivity Options
• RS232, USB

• Control System
• Other, CNC Controller

• Cooling System
• Integral coolant system

• Dimension (L*W*H)
• 2650 x 2425 x 2300 mm

• Drive
• Servo motor

• Features
• High rigidity, Precision processing, User-friendly interface

• Frame Type
• Monolithic cast iron frame

• Frequency
• 50/60 Hz

• Lubricating System
• Automatic

• Machine Type
• CNC Gear Shaving

• Model No
• ZSA 220

• Motor Power
• 7.5 kW

• Noise Level
• 76 dB(A)

• Operating Temperature
• 5C - 45C

• Operating Type
• Automatic

• Power
• 10 kW

• Power Rating
• 10 kW

• Power Source
• Other, Electric

• Pressure
• Standard - Not specified

• Product Type
• Other, Gear Shaving Machine

• Production Capacity
• 1200 pieces/month

• Surface Treatment
• Painted

• Technology
• CNC

• Usage & Applications
• Gear finishing, fine shaving of gear surfaces in automotive and industrial gearbox manufacturing

• Voltage
• 380V / 415V

• Weight (kg)
• 5900 kg

• Accuracy
• Up to DIN 7 class

• Color
• Industrial Grey / Blue

• Connectivity Options
• Basic I/O, CNC interface ports

• Control System
• Other, CNC (possibly Siemens or Fanuc, depending on retrofit)

• Cooling System
• Integrated coolant unit

• Dimension (L*W*H)
• Approx. 2300 x 1600 x 1950 mm

• Drive
• AC Motor with Frequency Inverter

• Features
• Rigid construction, high efficiency, programmable cycles, auto indexing

• Frame Type
• Cast Iron bed

• Frequency
• 50/60 Hz

• Lubricating System
• Automatic centralized lubrication

• Machine Type
• Gear Shaving

• Model No
• ZSA 220

• Motor Power
• 11-12 kW Main Spindle

• Noise Level
• < 80 dB(A)

• Operating Temperature
• 5C to 40C

• Operating Type
• Automatic

• Plastic Processed
• N/A (Metal gears only)

• Power
• Approx. 12 kW

• Power Rating
• 12 kW

• Power Source
• Other, Electric

• Pressure
• Standard shop air (approx. 6 bar)

• Product Type
• Other, CNC Gear Shaving Machine

• Production Capacity
• Up to 500 gears/shift

• Surface Treatment
• Other, Painted, precision-ground surfaces

• Technology
• Other, Numerical Control (CNC) with Mechanical Shaving Head

• Usage & Applications
• Finishing of cylindrical gears in automotive, industrial and agricultural machinery

• Voltage
• 380-415 V AC, 3-phase

• Weight (kg)
• Approx. 6000 kg

• Accuracy
• Up to DIN Class 6

• Color
• Industrial Grey

• Connectivity Options
• Ethernet, USB

• Control System
• Other, PLC and CNC Controller

• Cooling System
• Water/Oil Based Coolant System

• Dimension (L*W*H)
• Approx 3100mm x 2100mm x 2400mm

• Drive
• Servo Motor Drive

• Features
• High precision, Fully automatic, Rigid construction, User-friendly interface

• Frame Type
• Heavy Duty Rigid Frame

• Frequency
• 50/60 Hz

• Lubricating System
• Automatic Circulatory

• Machine Type
• CNC Gear Shaving Machine

• Model No

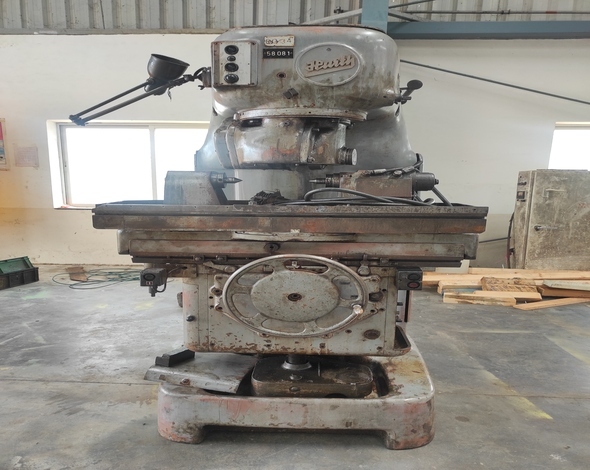

• ZSA 320

• Motor Power
• 15 kW

• Noise Level
• < 80 dB

• Operating Temperature
• 5C - 40C

• Operating Type
• Automatic

• Power
• Approximately 10 - 15 kW

• Power Rating
• 15 kW

• Power Source
• Other, Electric

• Pressure
• Hydraulic, Adjustable as per requirement

• Product Type
• Other, CNC Gear Shaving Machine

• Production Capacity
• 35 - 50 pieces/hour

• Surface Treatment
• Other, Paint Coated

• Technology
• Other, CNC Automation

• Usage & Applications
• Used for high-precision shaving of gears in industrial manufacturing

• Voltage
• 380 V

• Weight (kg)
• 7200 kg

• Accuracy
• Up to 0.01 mm

• Color
• Industrial Green

• Connectivity Options
• RS232, USB port

• Control System
• Other, CNC (Computer Numerical Control)

• Cooling System
• Integrated coolant system

• Dimension (L*W*H)
• 2100 x 1680 x 1950 mm

• Drive
• Main spindle drive, CNC-controlled

• Features
• CNC programmable, hydraulic clamping, automatic feed, high accuracy, robust build

• Frame Type
• Heavy-duty Cast Iron Frame

• Frequency
• 50/60 Hz

• Lubricating System
• Automatic lubrication

• Machine Type
• CNC Gear Shaving

• Model No
• ZSA 320

• Motor Power
• 7 kW main drive motor

• Noise Level
• Low (<80 dB)

• Operating Temperature
• 5C to 40C

• Operating Type
• Automatic

• Power
• 7 kW

• Power Rating
• 7 kW

• Power Source
• Other, Electric

• Pressure
• Hydraulic 5-8 MPa

• Product Type
• Other, Gear Shaving Machine

• Production Capacity
• Up to 40 gears/hour

• Surface Treatment
• Other, Paint Coated

• Technology
• Other, CNC Controlled

• Usage & Applications
• Gear manufacturing, Gear tooth surface finishing

• Voltage
• 380V/415V AC

• Weight (kg)
• 3700 kg
