Gear Hobbing Machine

• Automatic
• Other, Fully Automatic

• Capacity
• Up to 100 Kg Workpieces

• Color
• Other, Industrial Green / Customized

• Computerized
• Yes

• Control System
• CNC

• Cooling System
• Other, Industrial Chiller with Coolant Recirculation

• Cutting Area
• 300 mm x 600 mm

• Cutting Function
• Other, Gear Hobbing, Spline Cutting

• Cutting Material
• Metal (Steel, Cast Iron, Non-ferrous Metals)

• Cutting Method
• Continuous Hobbing

• Cutting Speed
• 0.1 to 120 mm/min (Variable)

• Cutting Thickness
• Up to 80 mm

• Dimension (L*W*H)
• 2700 mm x 1650 mm x 1850 mm

• Drive Motor
• High Torque Brushless DC Motor

• Drive Type
• Other, Servo Motor Drive

• Feature
• Other, High-precision, Heavy Duty, Automatic Lubrication System

• General Use
• Gear Manufacturing, Worm Cutting, Spline Production

• Material
• Other, Alloy Steel, Stainless Steel, Hardened Steel, Cast Iron

• Mechanical Precision
• 0.008 mm

• Motor
• Main Spindle 7.5 kW AC Servo motor

• Product Type
• CNC Russian Hobbing Machine

• Software Detail
• Proprietary CNC Control Software

• Type
• Other, Hobbing Machine

• Voltage
• 380 V, 50Hz, 3 Phase

• Weight (kg)
• 4200 kg

• Automatic
• Other, Fully Automatic

• Capacity
• Workpiece up to 150 mm module

• Color
• Other, Machine Grey/Blue

• Computerized
• Yes

• Control System
• CNC (Siemens/Fanuc)

• Cooling System
• Other, Integrated coolant system

• Cutting Area
• 400 mm maximum workpiece diameter

• Cutting Function
• Other, Gear hobbing, spline cutting, worm cutting

• Cutting Material
• Steel, Alloy, Cast Iron, Brass

• Cutting Method
• Dry and Wet

• Cutting Speed
• 50-300 rpm (variable)

• Cutting Thickness
• Up to 80 mm

• Dimension (L*W*H)
• 3200 mm 2100 mm 2300 mm

• Drive Motor
• AC Servo Motor

• Drive Type
• Other, Servo motor drive

• Feature
• Other, High precision, rigid construction, automatic lubrication

• General Use
• Gear cutting for automotive, industrial, and agricultural sectors

• Material
• Other, Cast iron body, steel worktable

• Mechanical Precision
• 0.01 mm

• Motor
• 7.5 kW main drive motor

• Product Type
• Gear Hobbing Machinery

• Software Detail
• Advanced CNC hobbing software interface

• Type
• Other, CNC Hobbing Machine

• Voltage
• 380V/415V, 3 Phase, 50/60 Hz

• Weight (kg)
• Approx. 4800 kg

• Automatic
• Other, Yes, with programmable auto-loader

• Capacity
• Max. workpiece length: 600 mm

• Color
• Other, Industrial Grey with blue highlights

• Computerized
• Yes

• Control System
• CNC based with touchscreen interface

• Cooling System
• Other, Oil-based or water-based coolant system

• Cutting Area
• Max. workpiece diameter: 255 mm

• Cutting Function
• Other, High-precision gear hobbing, automatic cycle, dry and wet cutting

• Cutting Material
• Ferrous and non-ferrous metals

• Cutting Method
• Dry/Wet cutting with programmed cycle

• Cutting Speed
• Up to 300 rpm (hob spindle)

• Cutting Thickness
• Up to 45 mm

• Dimension (L*W*H)
• Approx. 2600 x 2200 x 2400 mm

• Drive Motor
• AC servo motors, direct drive

• Drive Type
• Other, Servo motor drive on all axes

• Feature
• Other, 6-axis CNC, integrated auto-loader, user-friendly interface, high rigidity

• General Use
• Precision hobbing of gears, splines, worm gears

• Material
• Other, Steel, Alloy steel, Non-ferrous metals

• Mechanical Precision
• Positioning accuracy: 0.005 mm

• Motor
• Main spindle: 11-15 kW

• Product Type
• Gear hobbing machine

• Software Detail
• Advanced CNC Software (customizable interface)

• Type

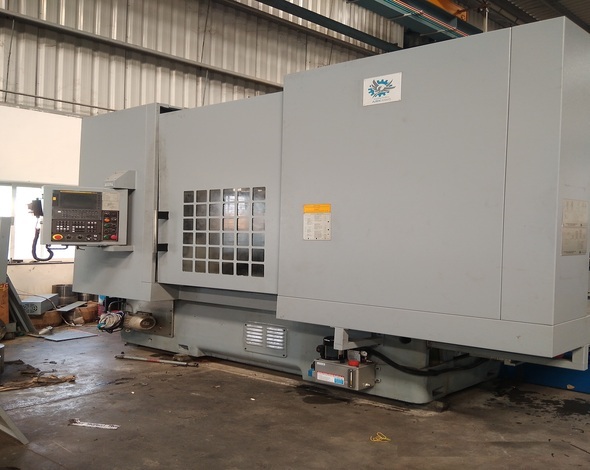

• Other, 6 Axis CNC Gear Hobbing Machine

• Voltage
• 380V / 415V, 3-phase, 50/60 Hz

• Weight (kg)
• Approx. 5000 kg

• Automatic
• Yes

• Capacity
• Maximum gear module up to 8

• Color
• Other, Blue-grey

• Computerized
• Yes

• Control System
• CNC

• Cooling System
• Other, Automatic coolant system

• Cutting Area
• Up to 200 mm diameter wheel

• Cutting Function
• Other, Gear hobbing, splines, worm gears, and special tooth forms

• Cutting Material
• Hardened steel, alloys, cast iron

• Cutting Method
• Dry and wet cutting, multiple passes

• Cutting Speed
• Up to 200 rpm (adjustable)

• Cutting Thickness
• Up to 250 mm

• Dimension (L*W*H)
• 2200 x 1700 x 2100 mm

• Drive Motor
• AC servo-driven spindle

• Drive Type
• Other, Servo motor drive

• Feature
• Other, 5 axis simultaneous control, high rigidity, automatic lubrication

• General Use
• Precision gear manufacturing and automation solutions

• Material
• Other, Steel, cast iron, non-ferrous metals

• Mechanical Precision
• 0.005 mm positioning repeatability

• Motor
• High torque AC servo motor

• Product Type

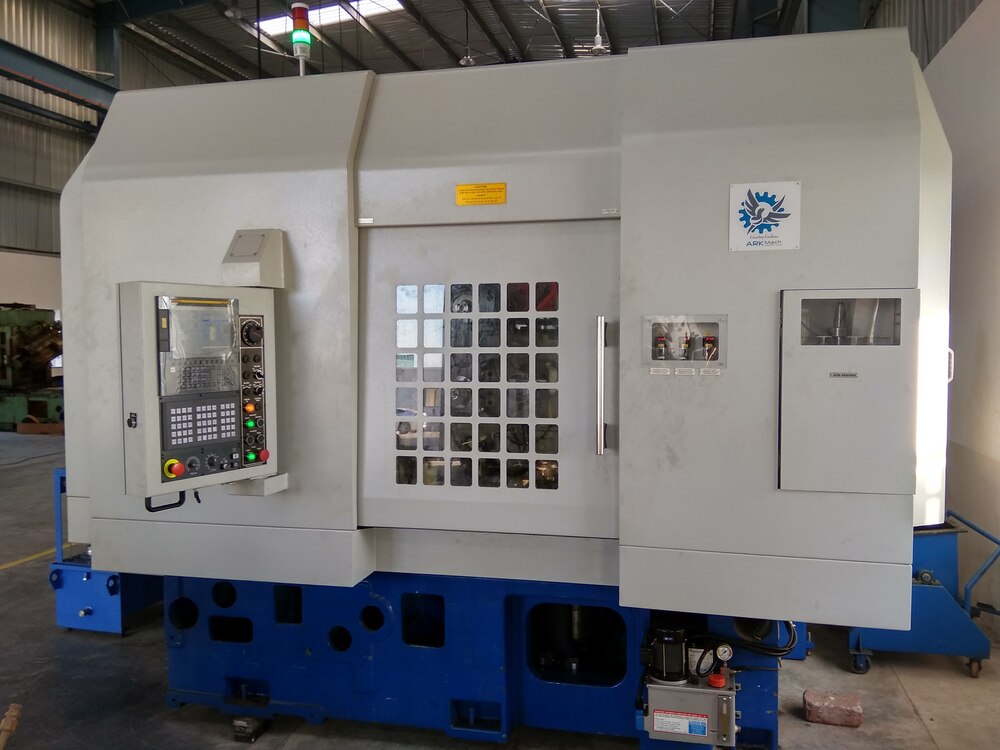

• 5 axis CNC Hobbing Machine

• Software Detail
• Advanced CNC software with graphical interface

• Type
• Other, Hobbing Machine

• Voltage
• 380V / 50Hz 3-Phase

• Weight (kg)
• Approx. 4200 kg

• Automatic
• Other, Fully Automatic

• Capacity
• Up to module 8, Max. gear diameter 400 mm

• Color
• Other, Grey & Blue

• Computerized
• Yes

• Control System
• CNC (Computer Numerical Control)

• Cooling System
• Other, Integrated coolant system

• Cutting Area
• 300 mm x 400 mm

• Cutting Function
• Other, Gear Hobbing (internal and external)

• Cutting Material
• Metals (steel, cast iron, etc.)

• Cutting Method
• Gear Hobbing

• Cutting Speed
• up to 120 rpm

• Cutting Thickness
• 1 mm - 25 mm (depending on material)

• Dimension (L*W*H)
• 2100 mm x 1500 mm x 1800 mm

• Drive Motor
• Servo motor

• Drive Type
• Other, Servo Motor Driven

• Feature
• Other, High precision, rigid structure, automatic lubrication system, user-friendly interface

• General Use
• High-speed and precision gear cutting

• Material
• Other, Alloy Steel, Carbon Steel, Cast Iron, and other metals

• Mechanical Precision
• 0.01 mm

• Motor
• Main spindle motor 5.5 kW

• Product Type
• Gear Manufacturing Equipment

• Software Detail
• Dedicated CNC control with integrated programming software

• Type
• Other, CNC Gear Hobbing Machine

• Voltage
• 380 V / 50 Hz 3 Phase

• Weight (kg)
• 3500 kg

• Automatic
• Other, Fully Automatic

• Capacity
• Module up to 5 mm, Gear Diameter up to 300 mm

• Color
• Other, Blue-Grey

• Computerized
• Yes

• Control System
• CNC based Digital Control

• Cooling System
• Other, Automatic Lubrication and Coolant System

• Cutting Area
• 320 mm x 320 mm

• Cutting Function
• Other, Precision Gear Hobbing, Multi-Axis Machining

• Cutting Material
• Steel, Brass, Aluminum Alloys

• Cutting Method
• Hobbing

• Cutting Speed
• Up to 2000 rpm

• Cutting Thickness
• Up to 60 mm

• Dimension (L*W*H)
• 2200 mm x 1800 mm x 2200 mm

• Drive Motor
• 5.5 kW AC Servo Motor

• Drive Type
• Other, Servo Driven

• Feature
• Other, Five Axis Simultaneous Operation, High Rigidity Structure

• General Use
• Industrial Gear Manufacturing

• Material
• Other, Alloy Steel, Stainless Steel, Cast Iron, Non-ferrous Metals

• Mechanical Precision
• 0.01 mm

• Motor
• High Torque AC Servo Motors

• Product Type

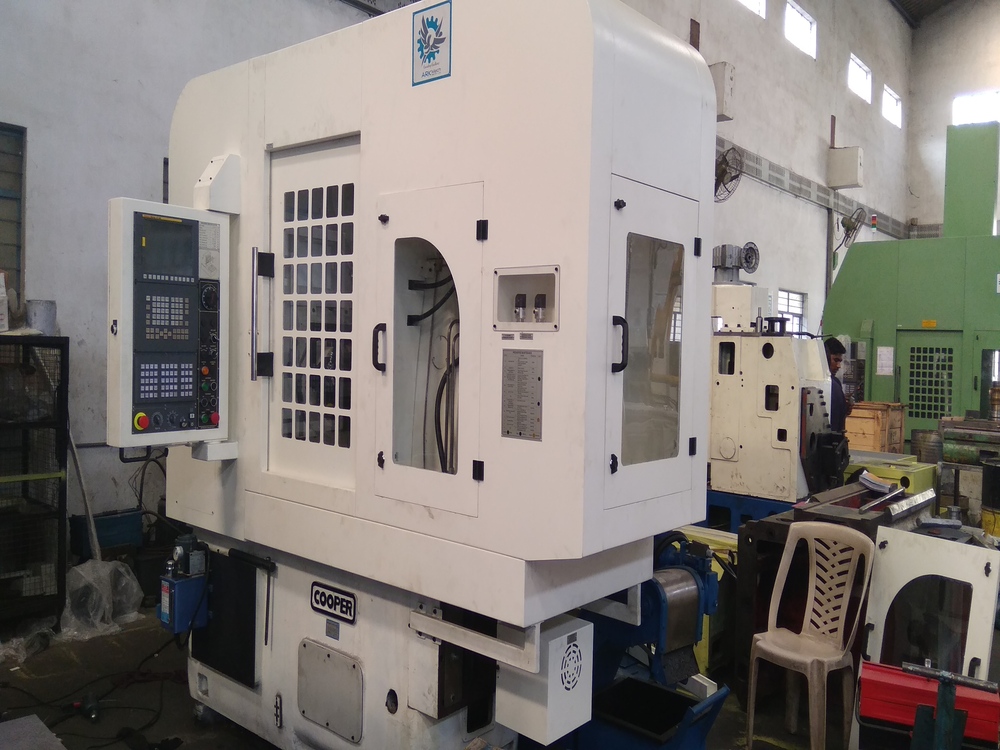

• 5 Axis CNC Hobbing Machine

• Software Detail
• Advanced CNC Control Software

• Type
• Other, Gear Hobbing Machine

• Voltage
• 380V / 50 Hz

• Weight (kg)
• 3500 kg

• Automatic
• Other, Fully Automatic

• Capacity
• Workpiece Diameter 10-200 mm

• Color
• Other, Industrial Grey/Green

• Computerized
• Yes

• Control System
• Siemens/Fanuc CNC

• Cooling System
• Other, Integrated Coolant Supply

• Cutting Area
• 250 mm x 100 mm

• Cutting Function
• Other, Spline, Gear, and Serration Hobbing

• Cutting Material
• Steel, Alloy, Non-Ferrous Metals

• Cutting Method
• Hobbing with CNC Positioning

• Cutting Speed
• 50-300 RPM (Adjustable)

• Cutting Thickness
• Up to 30 mm

• Dimension (L*W*H)
• 2800 mm x 1800 mm x 2000 mm

• Drive Motor
• AC Servo Motor 3.5 kW

• Drive Type
• Other, Servo Motor Drive

• Feature
• Other, High Precision, Fully Automatic Operation, User-Friendly Interface

• General Use
• Manufacturing and Cutting Splines, Gears, and Shafts

• Material
• Other, Alloy Steel, Cast Iron, Hardened Steel

• Mechanical Precision
• 0.01 mm

• Motor
• Main Spindle Motor 7.5 kW

• Product Type

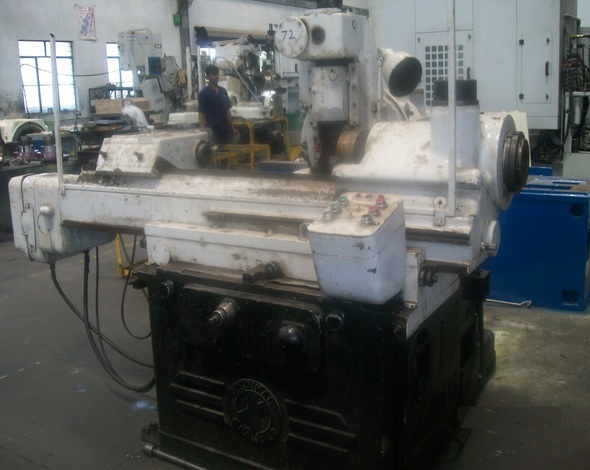

• CNC Spline Hobbing Machine

• Software Detail
• Proprietary CNC Control Software

• Type
• Other, Spline Hobbing Machine

• Voltage
• 380V/440V, 3 Phase, 50/60 Hz

• Weight (kg)
• 3500 kg

• Automatic
• Other, Fully Automatic

• Capacity
• Max Gear Diameter 450 mm

• Color
• Other, Industrial Grey

• Computerized
• Yes

• Control System
• Siemens CNC

• Cooling System
• Other, Integral Coolant System

• Cutting Area
• Up to 450 mm

• Cutting Function
• Other, 6 Axis Hobbing and Cutting Operation

• Cutting Material
• Gear Blanks (Alloy Steel, CI, Al)

• Cutting Method
• Dry or Wet Hobbing

• Cutting Speed
• Up to 120 rpm

• Cutting Thickness
• 2 mm to 150 mm (depending on gear specs)

• Dimension (L*W*H)
• Approx. 2500 x 2200 x 2200 mm

• Drive Motor
• AC Servo Motor

• Drive Type
• Other, Servo Drive

• Feature
• Other, High Precision CNC Gear Hobbing

• General Use
• Precision Gear Hobbing Production

• Material
• Other, Alloy Steel, Cast Iron, Aluminum

• Mechanical Precision
• 0.012 mm

• Motor
• 11 kW Main Spindle Motor

• Product Type
• Industrial Hobbing Machine

• Software Detail
• Siemens 840D CNC Controller

• Type
• Other, CNC Gear Hobbing Machine

• Voltage
• 415 V, 3-Phase, 50 Hz

• Weight (kg)
• About 7000 kg

• Automatic
• Other, Fully Automatic

• Capacity
• Up to 4000 mm length of spline

• Color
• Other, Industrial Grey-Green

• Computerized
• Yes

• Control System
• CNC Panel

• Cooling System
• Other, Water/Coolant Based Automatic Circulation

• Cutting Area
• 1500 mm x 300 mm

• Cutting Function
• Other, Spline Hobbing and Gear Cutting

• Cutting Material
• Steels, Non-ferrous Metals

• Cutting Method
• Rotary Hob Cutting

• Cutting Speed
• 40 - 250 rpm (variable)

• Cutting Thickness
• Up to 50 mm

• Dimension (L*W*H)
• 3200 mm x 1950 mm x 2100 mm

• Drive Motor
• AC Servo Motor

• Drive Type
• Other, Servo Motor Drive

• Feature
• Other, High-precision, Rigid Structure, Programmable Operations

• General Use
• Splines, Gears, Shafts Hobbing

• Material
• Other, Alloy Steel, Carbon Steel, Cast Iron

• Mechanical Precision
• 0.01 mm

• Motor
• 10 HP Main Drive Motor

• Product Type

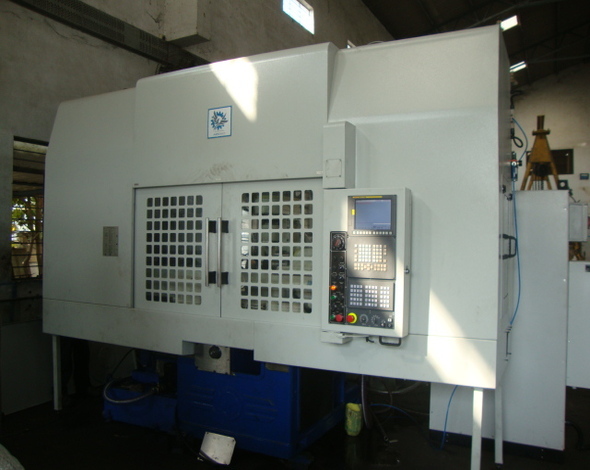

• Industrial CNC Spline Hobbing Machine

• Software Detail
• Industrial CNC Controller Interface

• Type
• Other, Horizontal Hobbing Machine

• Voltage
• 415 V AC, 3 Phase, 50 Hz

• Weight (kg)
• 3200 kg

• Automatic
• Other, Fully automatic operation

• Capacity
• Suitable for gears up to module 12

• Color
• Other, Standard industrial grey & blue

• Computerized
• Yes

• Control System
• Siemens/Fanuc CNC controller

• Cooling System
• Other, Integrated coolant system

• Cutting Area
• 630 mm diameter (max workpiece diameter)

• Cutting Function
• Other, Spur, helical, and worm gear hobbing

• Cutting Material
• All common gear steels and non-ferrous metal blanks

• Cutting Method
• Dry or wet hobbing

• Cutting Speed
• Up to 80-200 rpm (worktable); variable

• Cutting Thickness
• Up to 300 mm

• Dimension (L*W*H)
• Approx. 3400 mm x 2230 mm x 2400 mm

• Drive Motor
• Digital servo drives; direct drive for table and hob

• Drive Type
• Other, Electric servo motors

• Feature
• Other, Six-axis simultaneous control, high rigidity, precision operation, CNC graphical interface, automatic loading/unloading (option)

• General Use
• Precision gear manufacturing for automotive, industrial, and machinery sectors

• Material
• Other, Ferrous and non-ferrous metals, alloy steel, cast iron

• Mechanical Precision
• 0.005 mm

• Motor
• Powerful main spindle AC servo motor

• Product Type
• Fully automatic CNC hobbing machine

• Software Detail
• Advanced CNC control software

• Type
• Other, 6 axis CNC Gear Hobbing Machine

• Voltage
• 400V, 3 Phase, 50/60 Hz

• Weight (kg)
• Approx. 8500 kg

• Automatic
• Other, Fully Automatic Operation

• Capacity
• Workpiece diameter up to 200 mm

• Color
• Other, Industrial Grey

• Computerized
• Yes

• Control System
• PLC / CNC Integrated

• Cooling System
• Other, Flood Coolant System

• Cutting Area
• 450 mm 200 mm

• Cutting Function
• Other, Gear Hobbing, Spline Cutting

• Cutting Material
• Alloy Steel, Cast Iron, Other Ferrous Materials

• Cutting Method
• Rotary Hobbing

• Cutting Speed
• Up to 120 rpm (Adjustable)

• Cutting Thickness
• Up to 80 mm

• Dimension (L*W*H)
• 2200 mm x 1400 mm x 1800 mm

• Drive Motor
• Heavy Duty Servo Motor

• Drive Type
• Other, Servo Motor

• Feature
• Other, High Precision, Heavy Duty Design, Automatic Operation

• General Use
• Precision Gear Making, Spline Shafts, and Related Jobs

• Material
• Other, Cast Iron, Hardened Steel

• Mechanical Precision
• 0.015 mm

• Motor
• Main Drive 7.5 kW AC Motor

• Product Type
• Automatic Gear Hobbing Machine

• Software Detail
• CNC Controller, User Programmable Interface

• Type
• Other, CNC Hobbing Machine

• Voltage
• 415 V AC, 3 Phase

• Weight (kg)
• Approx. 3750 kg
